PE结构(7)修复重定位表

本篇的理论概述已经在其他文章中给出，此处直接给代码实现。

PE结构(6)重定位表

代码实现

主入口函数

int main() {
	//将指定文件加载到内存，并解析PE信息到PEFILE结构体
	PEFILE peFile{ 0 };
	FILE* pFile = fopen("D:\\TestDLL.dll", "rb");
	int fileLength = LoadFileToMemory(pFile, &peFile);
	fclose(pFile);

	//将ImageBase修改掉
	if (peFile.h_op == nullptr) {
		return -1;
	}
	DWORD oldImageBase = peFile.h_op->ImageBase;
	peFile.h_op->ImageBase = 0x20000000;

	//按重定位表修复
	PDATA_RELOCATION_DIRECTORY pRelocationTable = nullptr;
	GetRelocationTable(&pRelocationTable, &peFile);
	FixedRelocationTable(pRelocationTable, &peFile, oldImageBase);

	//dump为新文件
	//根据内存映像dump到磁盘
	pFile = fopen("D:\\TestDLL2.dll", "wb");
	DumpFileBufferToFile(pFile, &peFile);
	return 0;
}

修复函数

//修复重定位表数据
void FixedRelocationTable(PDATA_RELOCATION_DIRECTORY table, lpPEFILE lpPEFile, DWORD oldImageBase) {
	DWORD imageBaseOffset = lpPEFile->h_op->ImageBase - oldImageBase;
	DWORD fileStart = (DWORD)lpPEFile->h_dos;

	while (table->VirtualAddress != 0 && table->SizeOfBlock != 0) {
		DWORD virtualAddress = table->VirtualAddress;
		DWORD offsetNum = (table->SizeOfBlock - 8) / 2;
		for (int i = 0; i < offsetNum; i++) {
			WORD offset = table->TypeOffset[i];
			BYTE high4bit = offset >> 12;
			WORD low12bit = offset & 0x0FFF;

			if (high4bit != 3) {
				continue;
			}

			DWORD targetFOA = Rva2Foa(virtualAddress + low12bit, lpPEFile);
			DWORD* opNumber = (DWORD*)(fileStart + targetFOA);
			*opNumber = *opNumber + imageBaseOffset;
		}
		table = (PDATA_RELOCATION_DIRECTORY)((DWORD)table + table->SizeOfBlock);
	}
}

dump文件buffer函数

void DumpFileBufferToFile(FILE* pFile, lpPEFILE peFile) {
	fseek(pFile, 0, SEEK_SET);
	DWORD size = peFile->h_op->SizeOfImage;
	DWORD bufferImageBase = (DWORD)peFile->h_dos;

	//PE属性
	lpPEHDOS lpHdos = peFile->h_dos;
	if (lpHdos == nullptr) {
		return;
	}
	lpPEHPE lpHpe = peFile->h_pe;
	if (lpHpe == nullptr) {
		return;
	}
	lpPEHOPTIONAL lpHop = peFile->h_op;
	if (lpHop == nullptr) {
		return;
	}
	lpPETable lpTable = peFile->pet;
	if (lpTable == nullptr) {
		return;
	}

	//拷贝PE头
	DWORD sizeOfHeader = lpHop->SizeOfHeader;
	for (int i = 0; i < sizeOfHeader; i++) {
		BYTE byte = *((LPBYTE)bufferImageBase + i);
		fputc(byte, pFile);
	}

	//遍历节表，拷贝每一节
	WORD numberOfSections = lpHpe->NumberOfSections;
	for (int num = 0; num < numberOfSections; num++) {
		lpPETable t = (lpTable + num);
		DWORD pointerToRawData = t->PointerToRawData;
		DWORD sizeOfRawData = t->SizeOfRawData;

		fseek(pFile, pointerToRawData, SEEK_SET);

		for (int i = 0; i < sizeOfRawData; i++) {
			BYTE byte = *((LPBYTE)bufferImageBase + pointerToRawData + i);
			fputc(byte, pFile);
		}
	}
}

测试修复效果

测试代码：

#include <Windows.h>
#include <stdio.h>

int main() {

	typedef float (*MulFunc)(float, float);
	MulFunc mul = nullptr;

	HMODULE hModule = LoadLibraryA("D:\\TestDLL2.dll");
	if (hModule == NULL) {
		return -1;
	}

	mul = (MulFunc)GetProcAddress(hModule, "mul");
	printf("mul result : %.2f", mul(5.0f, 6.0f));
}

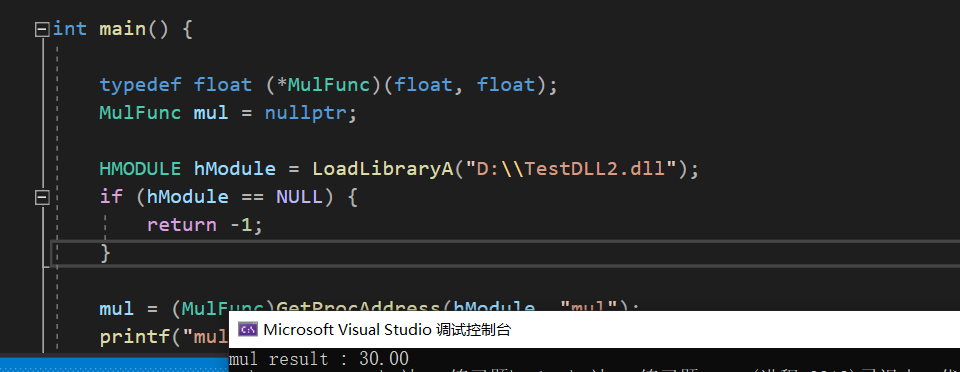

测试结果：
